YASKAWA AC Drive V1000
The Yaskawa V1000 is a compact variable frequency drive (VFD) engineered for efficient control of induction and permanent-magnet motors. With advanced vector algorithms, integrated safety, and robust protection, the V1000 provides smooth torque, stable acceleration, and long-term reliability. Its small footprint and easy-to-use interface make it ideal for OEMs, panel builders, and automation integrators seeking dependable performance with minimal maintenance.
Request a Quote
Yaskawa V1000 Product

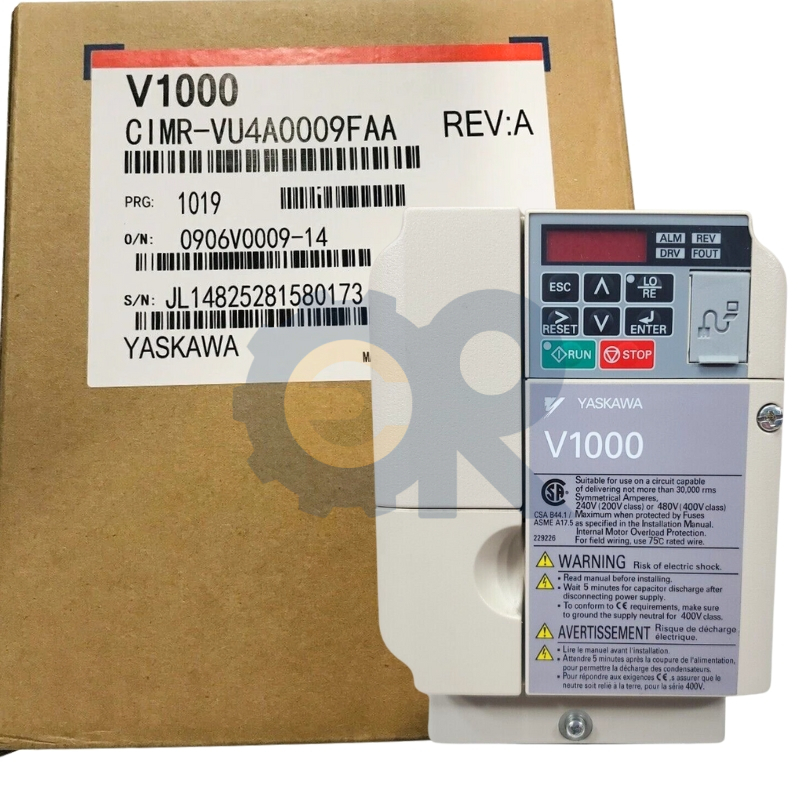

- CIMR-VU4A0009FAA

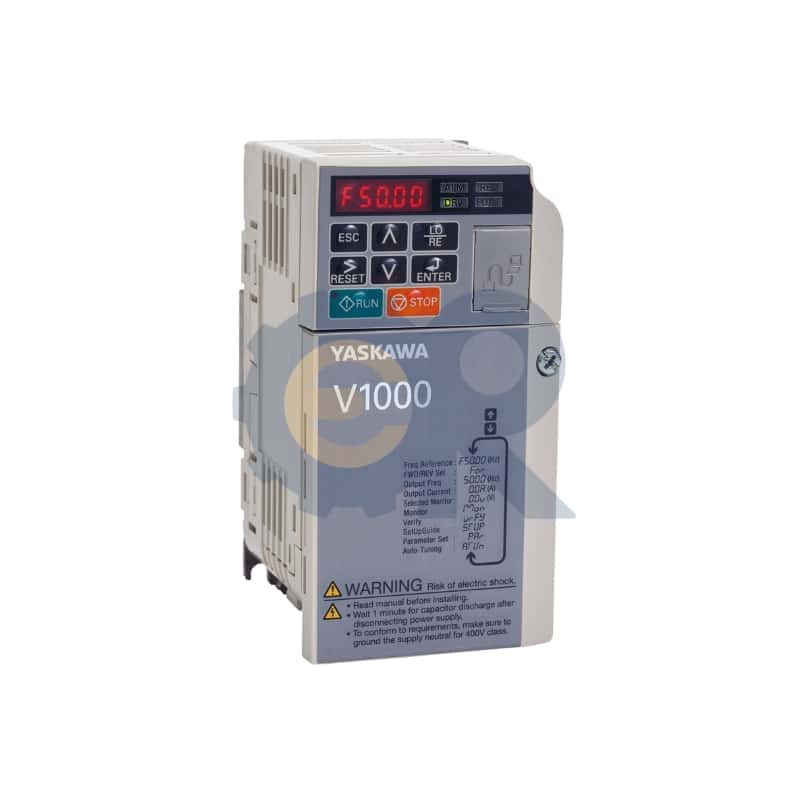

- CIMR-VT2A0010BAA

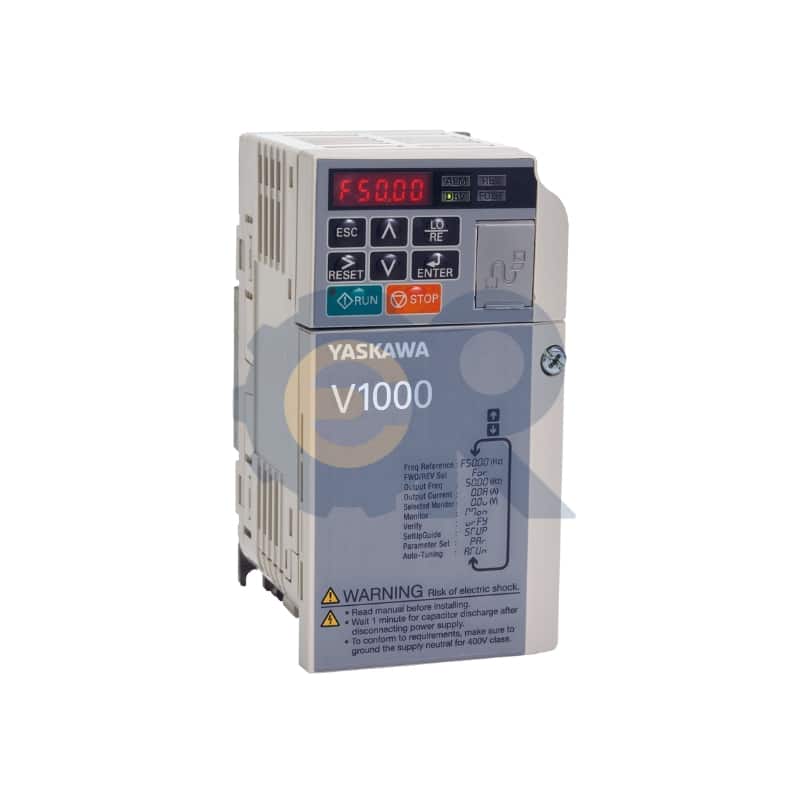

- CIMR-VCBA0006BAA
About the Yaskawa V1000
The Yaskawa V1000 Series is a world-class compact variable frequency drive (VFD) engineered for reliable motion control across a broad spectrum of industrial machinery.
Developed by Yaskawa Electric, a global leader in drive technology, the V1000 combines advanced vector control algorithms, robust protection circuits, and a space-saving design, making it one of the most widely adopted inverters in manufacturing and automation sectors worldwide.
With power ratings from 0.1 kW to 18.5 kW, available in 200 V and 400 V classes, the V1000 offers exceptional torque response and stability under varying load conditions. It supports both induction motors (IM) and permanent-magnet motors (PM) without external feedback, ensuring precise control even in sensorless environments.
With support for both asynchronous and permanent-magnet motors, the V1000 adapts to diverse industrial environments—maintaining smooth acceleration, stable torque, and quiet operation under variable loads.
Key Features & Technical Advantages
| Feature | Description | Benefit |
|---|---|---|
| V/f & Open-Loop Vector Control | Delivers stable torque and smooth speed regulation under varying load | Precise control for conveyors, pumps, and positioning systems |
| Integrated Braking Transistor | Standard in most ratings | Simplifies design for deceleration and stop control |
| Built-in Safety Circuits | Safe Torque Off (STO) compliant with IEC 61800-5-2 | Enhances operator and system safety |
| Environmental Resistance | PCB coating and optimized cooling path | Reliable performance in dusty or humid environments |
| EMC Compliance | Integrated noise filters | Simplifies CE certification |
| Parameter Copy Function | Easy parameter duplication between drives | Speeds up multi-machine setup |
| Energy-Saving Mode | Dynamic voltage optimization | Reduces energy consumption under partial load |
V1000 Model Catalog
Browse by Voltage Class and Product Type. Use the search and filters in each section.
| Model | Series | Voltage Class | Product Type | Notes |
|---|
About Goldrayline
Goldrayline is an international distributor of industrial automation parts. We specialize in PLCs, drives, servo motors, HMIs, and CNC control components from world-leading brands such as Yaskawa, Siemens, Mitsubishi, Schneider, Omron, ABB, and more.
Our mission is to simplify global procurement through reliable sourcing, technical expertise, and rapid logistics. With extensive inventory and engineering-driven service, we help manufacturers and integrators minimize downtime and achieve performance excellence.
Why Choose GoldRayline
GoldRayline is your trusted partner for genuine industrial automation components, providing expert procurement, technical support, and verified quality assurance.
- 20,000+ models in stock across major brands: Siemens, Yaskawa, Mitsubishi, ABB, Schneider, and more.
- 2,000+ global customers served with consistent satisfaction.
- One-stop sourcing for drives, PLCs, motors, and CNC components.
- Global logistics via DHL, UPS, and FedEx for 5–10 day delivery.
- 1-year warranty on new products, 6-month on refurbished units.
- Engineer-backed testing and technical verification before shipment.
Frequently Asked Questions
1. What makes the Yaskawa V1000 different from other inverters?
The V1000 is known for its outstanding reliability, compact size, and energy efficiency. It delivers precise motor control and long operating life, ideal for both industrial automation and OEM equipment.
2. What do the VU, VC, VB, VT, and VZ series codes represent?
These prefixes indicate the variant and voltage class within the V1000 family:
VU2A → 200 V class (compact/general-purpose)
VC4A/VB4A/VT4A → 400 V class (standard/extended)
VZ/VCBA/VBBA/VUBA → OEM or special variants
All share the same platform, ensuring consistent performance across all models.
3. What voltage and power ranges are available?
The V1000 series covers 200 V (single/three-phase) and 400 V (three-phase) models, with power ratings from 0.1 to 18.5 kW, suitable for conveyors, pumps, fans, and general automation systems.
4. How do I choose the right V1000 model?
Select the model according to your supply voltage, motor current, and braking or overload requirements.
GoldRayline engineers can recommend the correct model based on your motor nameplate and application details.
5. Can the V1000 operate permanent magnet (PM) motors?
Yes. It supports open-loop vector control for both induction and PM motors, providing smooth torque and stable operation without encoder feedback.
6. Can you provide discontinued or OEM-coded versions?
Yes. GoldRayline specializes in legacy and OEM-coded drives (VA/VB/VC/VT/VZ) and offers verified replacements with identical parameters and wiring compatibility.
7. How does GoldRayline ensure product authenticity?
All V1000 drives are sourced through authorized distributors and verified suppliers.
Each unit undergoes multi-point inspection, serial number verification, and includes pre-shipment photos for quality assurance.
8. What communication options are available?
The V1000 features Modbus RTU as standard. Optional communication cards support CANopen, DeviceNet, PROFIBUS, and Ethernet protocols for easy system integration.
9. What is the delivery time and warranty policy?
Most models ship within 3–5 business days from stock, with global delivery in 5–10 days via DHL, UPS, or FedEx.
Warranty coverage: 1 year for new drives, 6 months for refurbished units, with complete inspection documentation.
10. How can I request a quotation or replacement recommendation?
Contact us at [email protected] with your model number, motor power, and application details.
Our engineering team will respond within one business day with verified model availability, lead time, and quotation.
YASKAWA V1000 Series Technical Manual (PDF)
The YASKAWA V1000 Series Technical Manual provides complete engineering and installation guidance for Yaskawa’s compact and versatile general-purpose inverter. It includes detailed specifications, wiring diagrams, parameter lists, control logic, and troubleshooting procedures for all V1000 models.
This manual is essential for engineers and technicians involved in setup, commissioning, and maintenance of V1000 inverters used in automation systems, conveyors, fans, pumps, and servo applications.
✅ Contents Overview:
Electrical specifications & performance ratings
Control modes and I/O functions
Parameter settings and tuning
Protection circuits & fault diagnostics
Communication (Modbus / RS-485) configuration
Download the official YASKAWA V1000 Technical Manual (PDF) to ensure safe, efficient, and precise inverter operation within your automation system.
