Product Overview

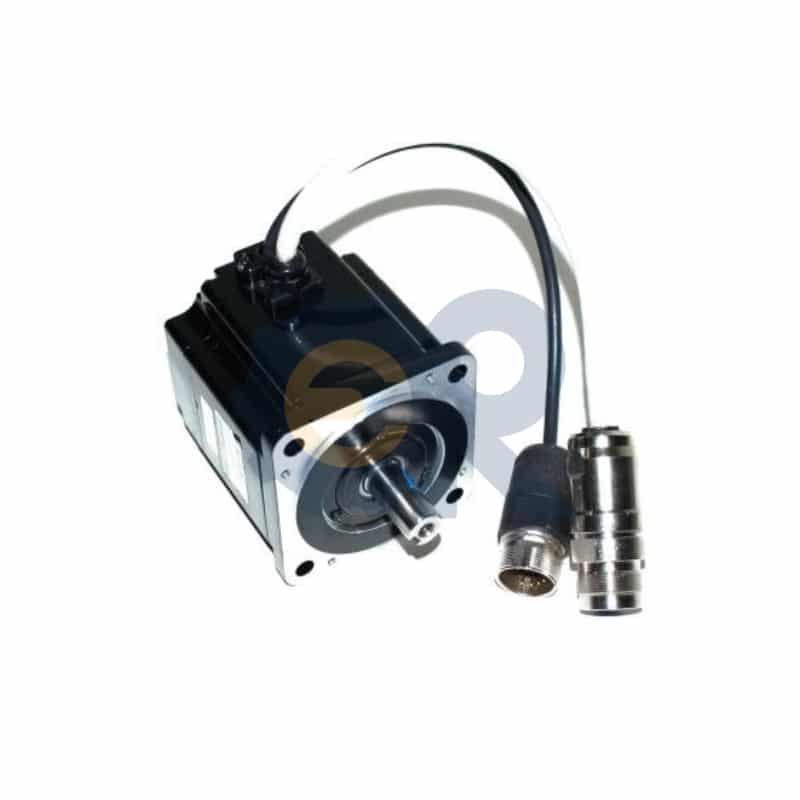

The Yaskawa SGMPH-15DAA6CD is a specialized, high-power servo motor from the Sigma-II (Σ-II) Series, engineered for top-tier industrial machinery. Its 400V AC rating (‘D’ code) immediately identifies it as a solution for high-voltage systems, a critical specification for procurement agents serving European or heavy-industrial markets. An exact voltage match is non-negotiable for safe and reliable operation.
This model’s suffix, -6CD, reveals its built-in advantages for advanced applications. The Holding Brake (‘C’) provides essential load security on vertical axes, while the Oil Seal (‘D’) ensures longevity in demanding environments with potential exposure to contaminants. For traders, offering this all-in-one unit demonstrates technical expertise and provides a high-value solution. GoldRayline makes this possible by maintaining a ready stock of these specific, hard-to-find configurations, backed by our competitive pricing and rapid global logistics.
Specifications
| Model | SGMPH-15DAA6CD | Product Brand | Yaskawa Electric |
|---|---|---|---|
| Product Type | AC Servo Motor | Product Series | Sigma-II (Σ-II) |
| Input Voltage | 400V AC (Special Class) | Rated Output | 1.5 kW (1500 W) |
| Rated Current | Refer to Nameplate | Rated Speed | 3000 rpm |
| Max Speed | 4500 rpm | Rated Torque | 4.77 Nm |
| Encoder Type | 13-bit Incremental | Brake Option | Yes (Indicated by ‘C’) |
| Protection | Oil Seal (Indicated by ‘D’) | Form Factor | Standard Frame |
| Approx. Weight | 8.0 kg (17.6 lbs) | Compatible Drive | Yaskawa SGDH (400V Models) |
Note: Specifications are based on Yaskawa Sigma-II data. This is a rare 400V class motor with both a holding brake and an oil seal. Contact GoldRayline to confirm compatibility for your specific application.
Related Yaskawa Sigma-II Series Servo Motors
| Model Number | Voltage Class | Rated Output | Key Features |
|---|---|---|---|
| SGMPH-15DAA-YG11 | 400V | 1.5kW | 400V Base Model, OEM Custom |
| SGMPH-15AAA21 | 200V | 1.5kW | Standard 200V Model |
| SGMPH-15A1A2B | 200V | 1.5kW | 200V with Brake |
| SGMPH-15AAE41D | 200V | 1.5kW | 200V with Brake, Custom Suffix |
| SGMGH-1ADCA61 | 400V | 1.0kW | SGMGH Series, 400V, Brake |
| SGMGH-1EDCA6C | 400V | 1.5kW | SGMGH Series, 400V, Brake |
Note: The models listed above are part of GoldRayline’s extensive inventory of Yaskawa motors. We specialize in hard-to-find voltage and option variants. For bulk pricing or to source other models, please contact our sales team.
