Product Overview

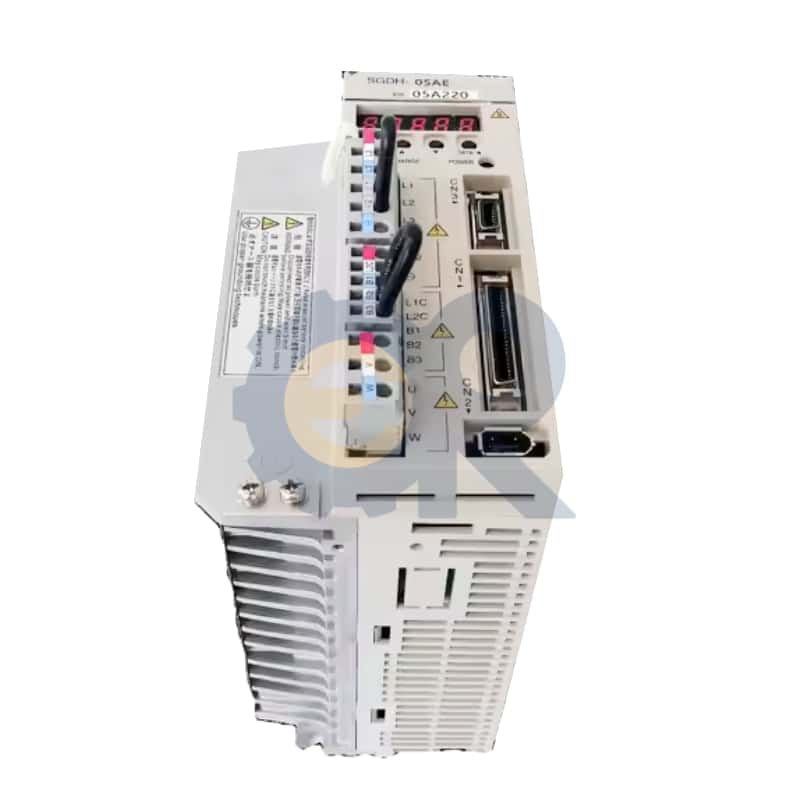

The Yaskawa SGDH-05AE-OY is a legacy servo drive from the highly reliable and widely installed Sigma-II (Σ-II) series. This model is distinguished by its -OY suffix, indicating a specific factory customization, making exact-match replacement crucial for system integrity.
Key model specifications for traders:
- Series: Sigma-II (Legacy High-Performance Servo)
- Model: SGDH (Sigma-II Drive)
- Power: 05 (500 W)
- Voltage: A (200V AC)
- Options: -OY (A critical, non-standard factory customization)
This drive is designed to power Yaskawa’s SGMGH series of servo motors and is a vital component for maintaining older equipment that requires this specific part number.
GoldRayline is your expert partner for sourcing hard-to-find and custom-suffix automation parts. Our inventory includes specific revisions like the SGDH-05AE-OY, ensuring you can provide the precise, no-substitute components your clients require to keep their operations running.
Specifications
| Model Number | SGDH-05AE-OY | Product Brand | Yaskawa Electric |
|---|---|---|---|
| Product Type | Servo Drive | Product Series | Sigma-II (Σ-II) |
| Input Voltage | 1/3-Phase, 200-230V AC | Input Frequency | 50/60 Hz |
| Rated Output | 500 W | Rated Output Current | 3.5 A |
| Applicable Motor | SGMGH-05 | Control Method | Analog Voltage, Pulse Train |
| Dynamic Brake | Built-in | Overload Capacity | 300% for 3 seconds |
| Key Feature | -OY Factory Customization | Ambient Temperature | 0 to 55°C (32 to 131°F) |
| Enclosure Rating | Open Type (IP12 equivalent) | Certifications | UL, cUL, CE |
Note: The Sigma-II is a legacy series. The -OY suffix indicates a special factory modification. A standard SGDH-05AE drive cannot be used as a direct replacement.
Related Yaskawa Sigma-II Series Drives & Motors
The Sigma-II series offers a complete range of drives and motors for legacy systems. This expert-curated table shows other components from this classic series to help you build a complete repair or replacement solution for your client.
| Model Number | Component | Rated Output | Voltage Class | Mating Component |
|---|---|---|---|---|
| SGDH-05AE-OY | Servo Drive | 500 W | 200V | SGMGH-05 |
| SGDH-01AE | Servo Drive | 100 W | 200V | SGMGH-01 |
| SGDH-10DE | Servo Drive | 1.0 kW | 400V | SGMGH-09 |
| SGDH-15AE-S | Servo Drive | 1.5 kW | 200V | SGMGH-13 |
| SGMGH-05ACA61 | Servo Motor | 450 W | 200V | SGDH-05AE |
| SGMGH-13DCA6F-OY | Servo Motor | 1.3 kW | 400V | SGDH-15DE |
Note: This table presents a selection of compatible Sigma-II parts from our stock. When dealing with custom suffixes like -OY, it is crucial to ensure an exact model match. Our technical team can help verify compatibility for your client. Contact us for a quote at [email protected].
