Siemens 6ES7332-5HF00-0AA0 SIMATIC S7-300 Analog Output SM 332

In Stock

Part No.: 6ES7332-5HF00-0AA0

Gross Weight: 1kg

1 Year Warranty

Quality guaranteed

Fast Shipping

3-7 business days

24/7 Support

Expert assistance

Description

Expand your control precision with Siemens 6ES7332-5HF00-0AA0. This 8-channel 12-bit analog output module provides reliable voltage and current signals. GoldRayline offers extensive stock, competitive pricing, and typical pre-shipment photos.

Price (USD)

Contact for Quote

In stock • Worldwide fast shipping • Bulk discount available

Product Overview

High-Density 8-Channel Analog Control

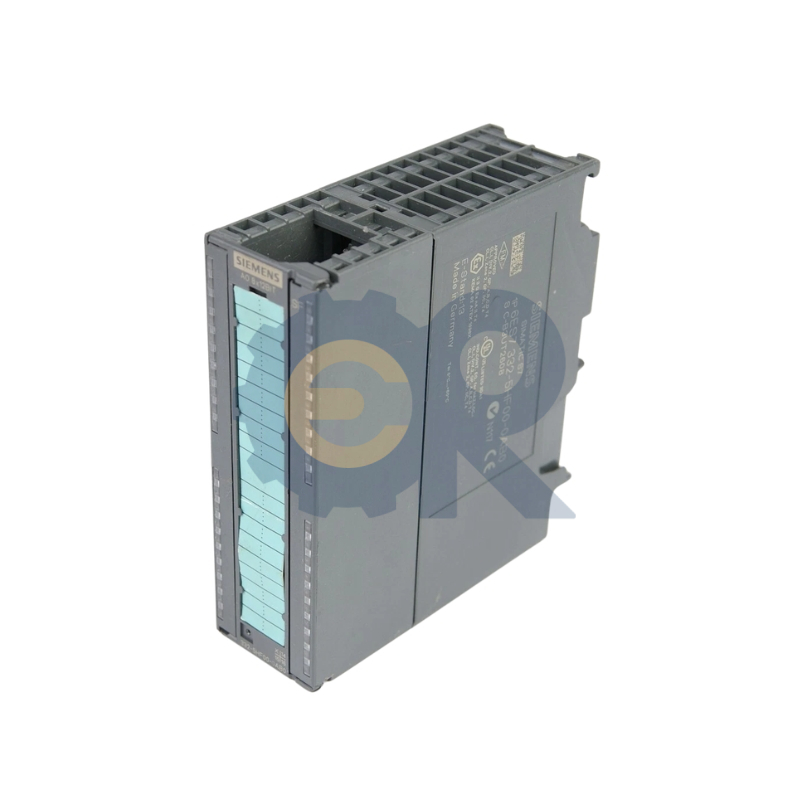

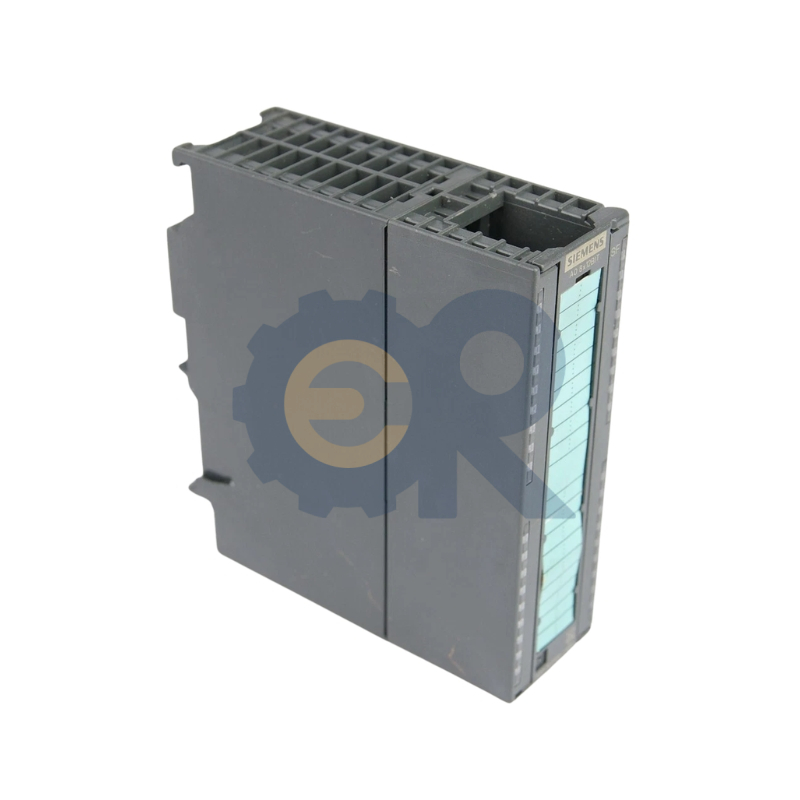

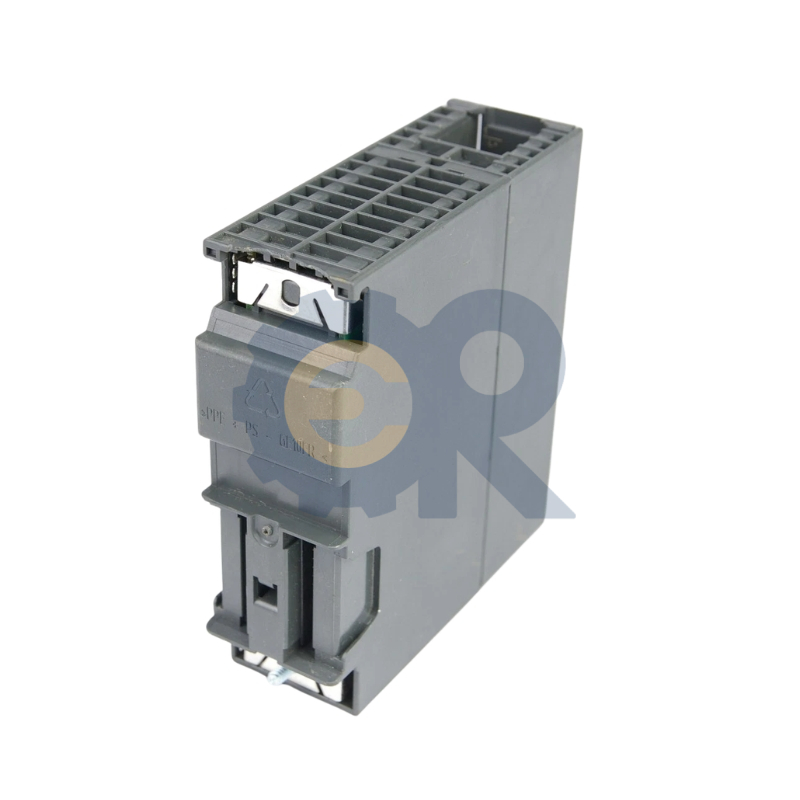

The Siemens 6ES7332-5HF00-0AA0 is a versatile 8-channel analog output module designed for SIMATIC S7-300 systems requiring multiple control signals in a compact footprint. Each channel is individually configurable for voltage (±10V, 1-5V, 0-10V) or current (±20mA, 4-20mA, 0-20mA) outputs with 12-bit resolution. This high-density 40mm module is the ideal solution for driving multiple proportional valves, frequency converters, or small actuators, allowing for efficient use of cabinet space without sacrificing signal integrity.

Strategic Sourcing for Automation Maintenance

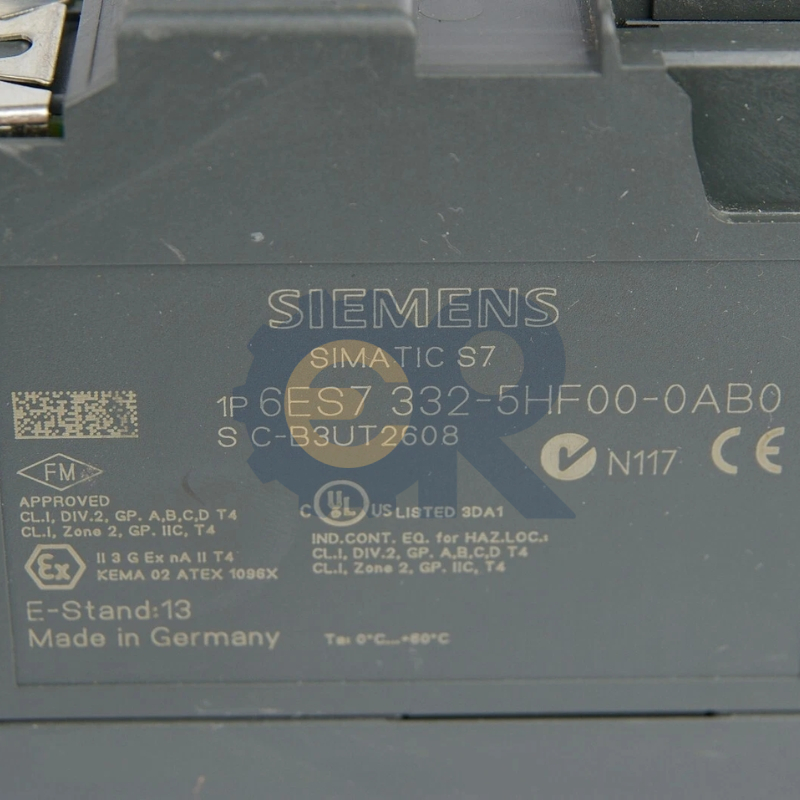

GoldRayline’s core value lies in providing a stable and cost-effective procurement channel for the S7-300 ecosystem. We understand that output modules are critical for maintaining process loops and machine performance. By maintaining an extensive inventory of original Siemens hardware, we offer highly competitive pricing compared to traditional regional channels. Our customer-centric service system focuses on transparency; we typically provide actual product photos before dispatch, confirming the hardware version and physical condition to ensure a smooth and reliable integration into your control rack.

Specifications

Model Number	6ES7332-5HF00-0AA0	Product Brand	SIEMENS
Product Type	Analog Output Module	Product Series	SIMATIC S7-300
Number of Outputs	8 Channels	Resolution	12 Bits
Voltage Output	±10V, 1-5V, 0-10V	Current Output	±20mA, 4-20mA, 0-20mA
Isolation	Tested at 500V DC	Conversion Time	Max. 0.8 ms (all channels)
Max. Current (L+)	340 mA (at 24V DC)	Max. Current (5V)	100 mA (Backplane)
Power Loss	typ. 6 W	Address Space	16 Byte (Output)
Dimensions (W x H x D)	40 × 125 × 117 mm	Protection Class	IP20
Operating Temp.	0 °C to +60 °C	Product Net Weight	approx. 272 g

Related Siemens SIMATIC S7-300 Analog I/O Modules

GoldRayline maintains deep stock of high-fidelity analog units. These models from our 3,911-item database are selected to complement the 8-channel 5HF00, providing various levels of precision and signal density for your control architecture.

Model Number	Channel Count	Signal Type	Feature	Connection
6ES7332-5HD01-0AB0	4 Outputs	Voltage / Current	12-bit Standard	20-pin
6ES7332-5HB01-0AB0	2 Outputs	Voltage / Current	12-bit Compact	20-pin
6ES7332-7ND02-0AB0	4 Outputs	Voltage / Current	16-bit High Speed	20-pin
6ES7331-7KF02-0AB0	8 Inputs	U/I/RTD/TC	Universal Input	20-pin
6ES7331-1KF00-0AB0	8 Inputs	U/I/RTD	13-bit Standard	40-pin
6ES7331-7NF10-0AB0	8 Inputs	Voltage / Current	16-bit High Prec.	40-pin
6ES7392-1AM00-0AA0	N/A	Accessory	Front Connector	40-pin

What is the primary difference between the 5HF00 and 5HD01 models?

The Siemens 6ES7332-5HF00-0AA0 offers 8 output channels, while the 5HD01 only offers 4. If your application requires controlling many actuators from a single rack, the 5HF00 is much more space-efficient. Additionally, the 5HF00 uses a 40-pin connector, whereas the 4-channel version uses a 20-pin connector.

Does this module require a 20-pin or 40-pin front connector?

The Analog Output Module 5HF00 is a 40mm wide unit that requires a 40-pin front connector (such as 6ES7392-1AM00-0AA0). GoldRayline keeps these essential accessories in stock and can bundle them with your module to simplify your procurement and installation.

Can I mix voltage and current outputs on the same module?

Yes. Through the hardware configuration in STEP 7 or TIA Portal, you can define each channel of the Siemens 6ES7332-5HF00-0AA0 independently. You can have some channels outputting 4-20mA current while others output 0-10V voltage.

Why is GoldRayline a better source for S7-300 analog output modules?

Many regional suppliers have shifted focus to newer series, resulting in long lead times for S7-300 parts. GoldRayline leverages a powerful global supply chain to maintain immediate stock of the Siemens 6ES7332-5HF00-0AA0, offering highly competitive pricing and significantly faster shipping than traditional factory channels.

What shipping speed can I expect for an international emergency?

We prioritize “Line Down” emergencies. Orders are typically dispatched via DHL Express, FedEx, or UPS within 24–48 hours of verification. Most international industrial sites receive their Siemens 6ES7332-5HF00-0AA0 in 3–7 business days, minimizing production downtime.

Does this module support Substitute Values on CPU stop?

Yes. You can program the Siemens 6ES7332-5HF00-0AA0 to either de-energize (0V/0mA), hold the last value, or output a specific pre-defined substitute value if the CPU goes into STOP mode or communication is lost. This is a critical feature for process safety.

How does GoldRayline support long-term B2B partnerships?

Our focus is on stability and transparency. We aim to be your reliable back-end partner by providing consistent inventory, technical assurance, and the cost-effective solutions needed by procurement teams to maintain legacy systems over the long term.
