Product Overview
High-Resolution 16-Bit Analog Precision

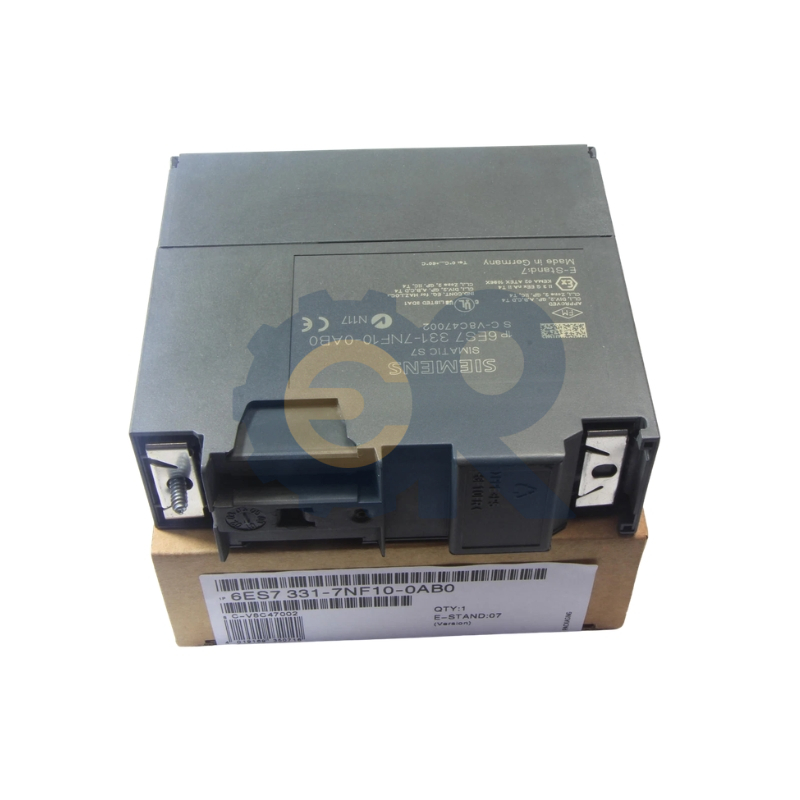

The Siemens 6ES7331-7NF10-0AB0 is a premium 8-channel analog input module designed for SIMATIC S7-300 systems requiring superior signal clarity and isolation. With its 16-bit resolution, it is specifically engineered to capture minute variations in critical process variables such as pressure, flow, and tension. While it offers optimized conversion times compared to standard modules (parameterizable via integration times like 10ms or 20ms), its true strength lies in its high-accuracy data acquisition and robust galvanic isolation, ensuring reliable performance in electrically noisy industrial environments.
Reliable Supply & Customer-Centric Support
GoldRayline’s core value is providing a stable and cost-effective procurement channel for high-precision S7-300 infrastructure. We recognize that 16-bit modules are essential for quality-critical production lines where measurement drift is not an option. By maintaining a comprehensive inventory of original Siemens hardware, we offer highly competitive pricing and eliminate the typical long lead times of factory channels. Our order process is designed for transparency; we typically provide actual product photos before dispatch to confirm the hardware version and physical condition, ensuring a smooth delivery to your facility.
Specifications
| Model Number | 6ES7331-7NF10-0AB0 | Product Brand | SIEMENS |
| Product Type | Analog Input (16-Bit) | Product Series | SIMATIC S7-300 |
| Number of Inputs | 8 Channels | Resolution | 16 Bits |
| Voltage Input | ±5V, ±10V, 1-5V | Current Input | ±20mA, 0/4-20mA |
| Conversion Time | Parameterizable (e.g. 10ms) | Isolation | Tested at 500V AC/DC |
| Max. Current (L+) | 200 mA (at 24V DC) | Max. Current (5V) | 100 mA (Backplane) |
| Power Loss | typ. 3 W | Address Space | 16 Byte (Input) |
| Dimensions (W x H x D) | 40 × 125 × 117 mm | Protection Class | IP20 |
| Operating Temp. | 0 °C to +60 °C | Product Net Weight | approx. 272 g |
Related Siemens SIMATIC S7-300 Analog I/O Modules
GoldRayline maintains deep stock of high-fidelity analog units. These models from our 3,911-item database are selected to complement the high-resolution 7NF10, providing various precision levels and signal types for your PLC configuration.
| Model Number | Channel Count | Signal Type | Feature | Connection |
| 6ES7331-7KF02-0AB0 | 8 Inputs | U/I/RTD/TC | Universal 12/14-bit | 20-pin |
| 6ES7331-7PF01-0AB0 | 8 Inputs | RTD (Pt100) | 16-bit High Prec. | 40-pin |
| 6ES7331-1KF00-0AB0 | 8 Inputs | U/I/RTD | 13-bit Standard | 40-pin |
| 6ES7332-5HD01-0AB0 | 4 Outputs | Voltage / Current | 12-bit Output | 20-pin |
| 6ES7332-7ND02-0AB0 | 4 Outputs | Voltage / Current | 16-bit High Speed | 20-pin |
| 6ES7334-0CE01-0AA0 | 4 In / 2 Out | Mixed Analog | Non-Isolated | 20-pin |
| 6ES7392-1AM00-0AA0 | N/A | Accessory | Front Connector | 40-pin |
