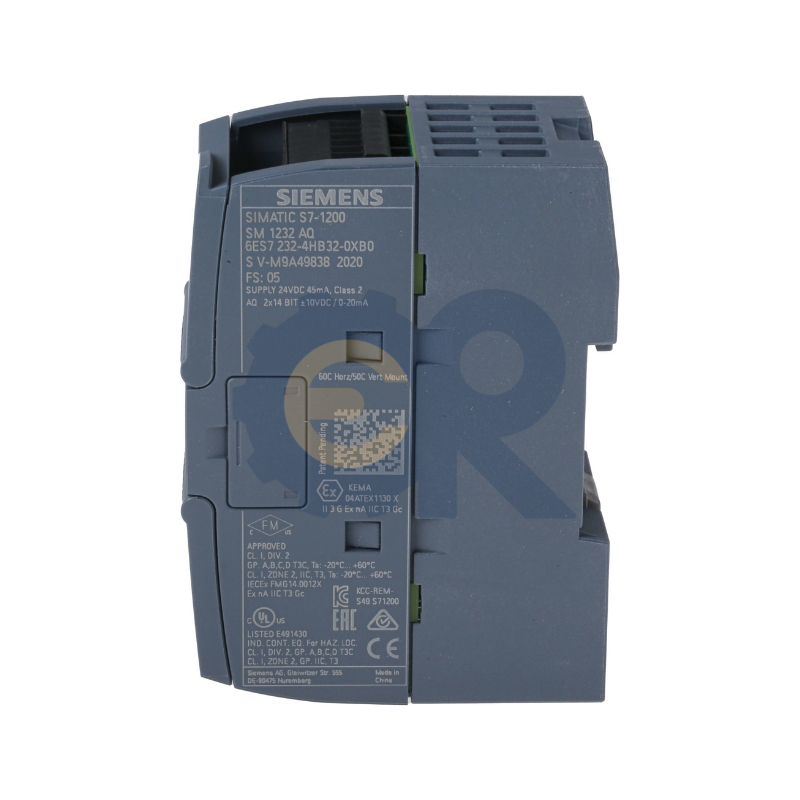

Siemens 6ES7232-4HB32-0XB0 SIMATIC S7-1200 Analog Output Module

Product Overview

The Siemens 6ES7232-4HB32-0XB0 is a vital expansion module for the SIMATIC S7-1200 series of programmable logic controllers, functioning as an Analog Output Module SM 1232. Its primary role is to significantly extend the analog control capabilities of the S7-1200 CPU, enabling the precise manipulation of continuous industrial processes and a wider array of analog actuators.

This module is distinguished by its four analog output channels, each delivering exceptionally accurate signals with a high 16-bit resolution. This superior resolution allows for extremely fine and smooth adjustments in critical process parameters such as motor speed, flow rates, pressure levels, and precise positional control. The versatility of the module is further enhanced by its support for both standard industrial analog signal types: voltage outputs (+/−10V) and current outputs (0−20mA). This broad compatibility makes it directly connectable to a wide range of analog-controlled devices, including advanced variable frequency drives, sophisticated proportional valves, and accurate process controllers, streamlining system design and reducing the need for external signal conditioners. Its compact footprint and robust industrial design ensure seamless integration and reliable, high-performance operation within any advanced S7-1200 automation solution, especially those requiring multiple, highly accurate analog outputs.

Specifications

Note: For precise application and detailed technical specifications for the 6ES7232-4HB32-0XB0 SIMATIC S7-1200 Analog Output Module SM 1232 (4 AO, 16 Bit), please consult the relevant SIMATIC S7-1200 System Manual for exact wiring diagrams, scaling, and programming details.

Features

The Siemens 6ES7232-4HB32-0XB0 SIMATIC S7-1200 Analog Output Module offers the following key features:

• 4 Analog Output Channels: Provides expanded capacity for precise analog control.
• High 16-Bit Resolution: Ensures superior accuracy and fine-grained control over output signals.
• Versatile Output Types: Supports both standard industrial voltage (+/−10V) and current (0−20mA) output signals.
• Flexible Signal Ranges: Allows user configuration for specific application requirements.
• Compact Design: Space-saving form factor ideal for integration into control cabinets.
• Robust Industrial Design: Built to withstand demanding industrial environments, ensuring reliable long-term operation.
• Seamless S7-1200 Integration: Easy installation and configuration with S7-1200 CPUs in the TIA Portal.
• Diagnostic Capabilities: Provides basic diagnostic information for efficient troubleshooting.

Applications

The Siemens 6ES7232-4HB32-0XB0 SIMATIC S7-1200 Analog Output Module SM 1232 (4 AO, 16 Bit) is ideally suited for various demanding industrial automation applications requiring continuous and high-precision analog control:

• Advanced Motor Speed Control: Precisely regulating motor speeds via variable frequency drives (VFDs) in critical processes.
• Proportional Valve Control: Fine-tuning the flow or pressure in complex fluid and gas systems.
• High-Accuracy Positioning: Controlling servo drives or precision actuators for intricate positioning tasks in robotics or machine tools.
• Precise Temperature Control: Modulating heating, ventilation, and air conditioning (HVAC) systems for optimal climate control.
• Industrial Lighting and Illumination: Implementing advanced dimming or intensity control in industrial settings.
• Test & Measurement Systems: Generating precise analog signals for testing equipment or calibration.
• Process Control in Critical Industries: Including chemical, pharmaceutical, food & beverage, and power generation where exact analog outputs are essential.
• Any application requiring multiple, highly accurate, and adjustable analog outputs for a SIMATIC S7-1200 system.
