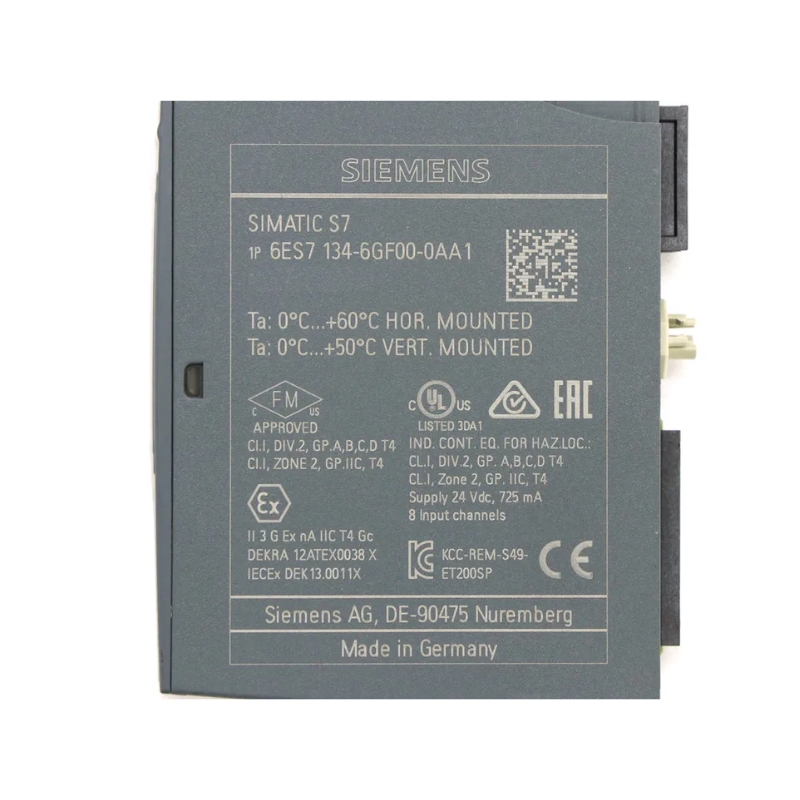

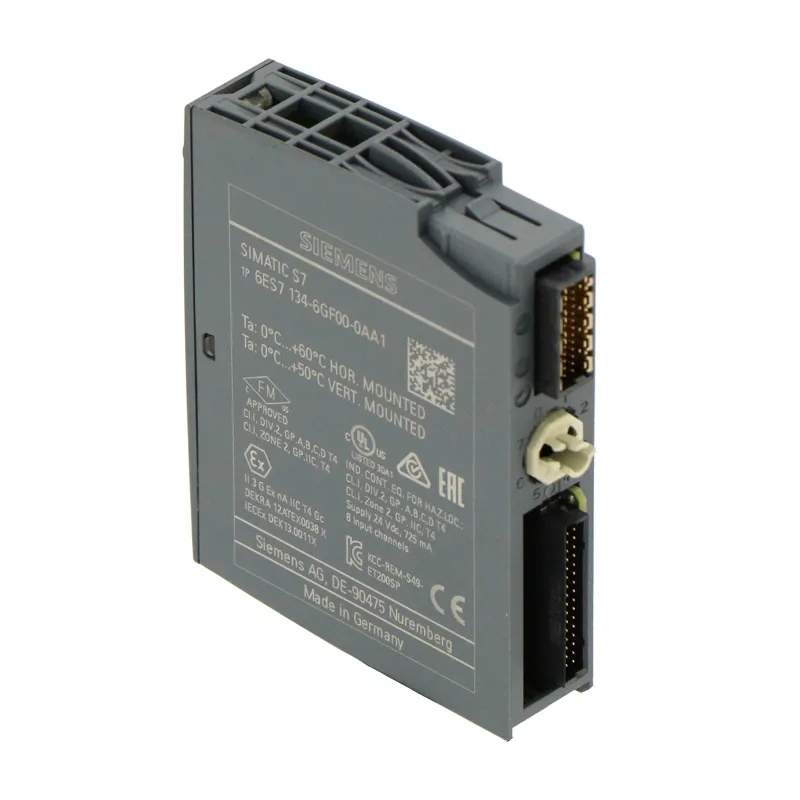

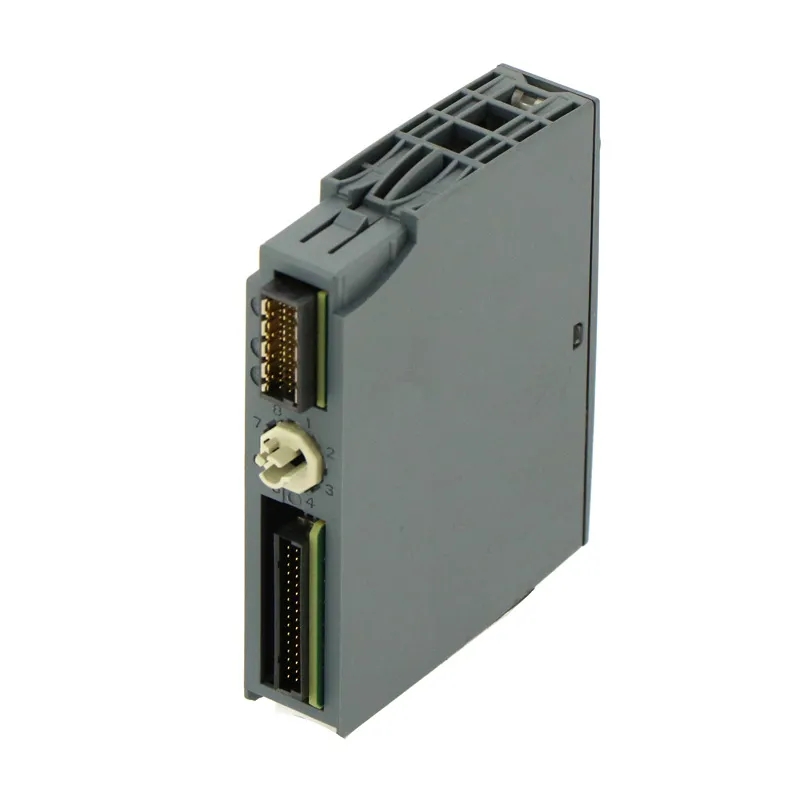

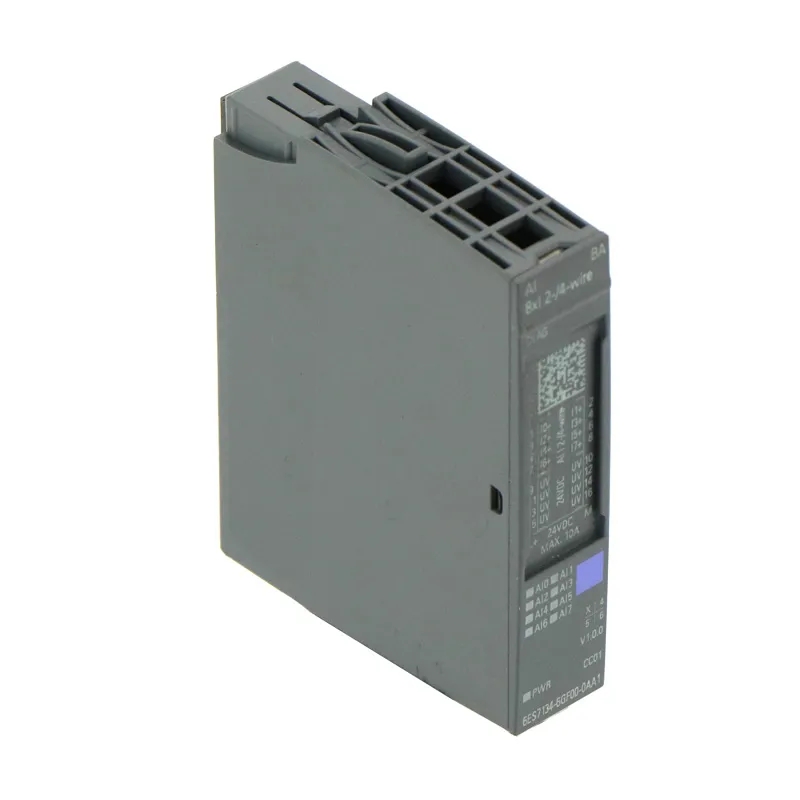

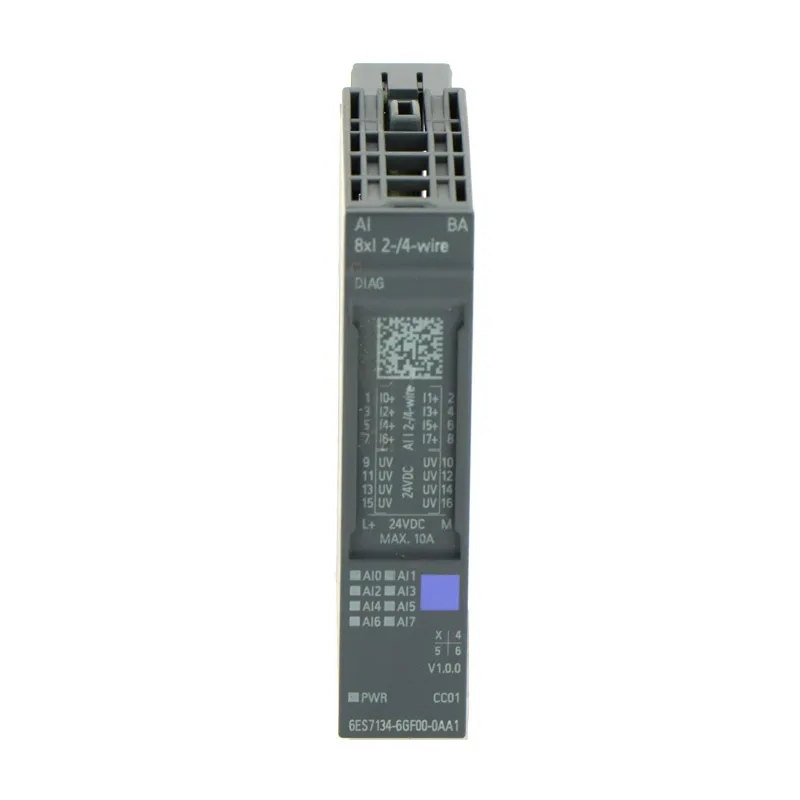

Product Overview
The Siemens 6ES7134-6GF00-0AA1 is a dependable electronic module for the compact SIMATIC ET 200SP distributed I/O system, functioning as a Standard Analog Input Module. This module is designed for the acquisition of temperature signals from 8 Resistance Thermometers (RTD) and Thermocouples (TC) with 2-wire connections. While a ‘Standard’ module, it offers robust and accurate measurement capabilities essential for general temperature monitoring and control tasks. It provides basic diagnostics functionalities to help with troubleshooting and system stability. The 6ES7134-6GF00-0AA1 seamlessly integrates with ET 200SP systems via suitable BaseUnits (Type A0, A1) and features a distinct CC00 color code for straightforward and error-free wiring. This module is an excellent choice for applications requiring reliable multi-channel temperature data acquisition within a flexible and space-saving decentralized automation solution, supporting efficient process management.
Specifications
| Product Model | 6ES7134-6GF00-0AA1 | Product Type | Analog Input Module (AI) |
| Net Weight | 0.03 kg (Estimated) | Series | SIMATIC ET 200SP Analog Modules |
| Inputs | 8 Analog Inputs | Sensor Types | Resistance Thermometers (RTD), Thermocouples (TC) |
| Connection Type | 2-wire | Features | Standard functionality, Suitable for BU Type A0, A1, Color code CC00, Basic Diagnostics |
| Compatibility | SIMATIC ET 200SP system | Mounting | ET 200SP BaseUnit |
| Operating Temperature | 0 to +60 °C | Country of Origin | Germany |
Note: For precise application and detailed technical specifications for the 6ES7134-6GF00-0AA1 SIMATIC ET 200SP Analog Input Module, please consult the official Siemens SIMATIC documentation to ensure proper installation, configuration, and optimal performance for your automation system.
Other Related SIMATIC ET 200SP Series
As the Siemens 6ES7134-6GF00-0AA1 belongs to the SIMATIC ET 200SP series, here are other related models within this compact and versatile ecosystem that Gold Rayline offers:
| 6ES7155-6AR00-0BN0 | 6ES7131-6BF00-0BA0 | 6ES7132-6BF00-0BA0 | 6ES7134-6HD00-0BA1 |
| 6ES7134-6JF00-0CA1 | 6ES7135-6HD00-0BA1 | 6ES7193-6BP00-0DA0 | 6ES7193-6AR00-0AA0 |
Note: These models represent various components within the SIMATIC ET 200SP ecosystem, including PROFINET Interface Modules, standard Digital I/O, other High Feature Analog I/O, and essential BaseUnits/connectors. Please be aware that previous models referenced in our conversation belonged to different Siemens series, such as SIMATIC S7-1200, SIMATIC ET 200MP, SIMATIC ET 200M, or SIMATIC ET 200S, which are designed for different controller platforms and applications. Please contact our sales team for specific model availability, detailed specifications, or to inquire about other Siemens components to meet your exact project requirements.
Features
The Siemens 6ES7134-6GF00-0AA1 SIMATIC ET 200SP Analog Input Module offers:
- 8 Analog Inputs: High channel density for efficient temperature monitoring.
- RTD and Thermocouple Support: Versatile for various temperature sensor types.
- 2-wire Connection: Simplifies wiring and reduces installation complexity.
- Standard Performance: Reliable and accurate measurement for general applications.
- Compact ET 200SP Design: Maximizes space efficiency in control cabinets.
- Flexible BaseUnit Compatibility: Designed for seamless integration with BU Type A0/A1.
- Color-Coded Wiring (CC00): Ensures quick and error-free installation.
- Basic Diagnostics: Helps in identifying common operational issues.
- Robust Construction: Ensures dependable performance in industrial environments.
- Cost-Effective Solution: Provides essential temperature measurement capabilities.
Applications
The Siemens 6ES7134-6GF00-0AA1 SIMATIC ET 200SP Analog Input Module is ideal for:
- Multi-Point Temperature Monitoring: In large systems, ovens, or cold storage facilities.
- Building Automation: Monitoring ambient temperatures and HVAC systems.
- General Process Monitoring: For non-critical temperature data acquisition in various industries.
- Energy Monitoring: Tracking thermal conditions in facilities.
- Machine Temperature Sensing: Basic temperature monitoring of equipment.
- Environmental Control: For straightforward temperature regulation tasks.
- Any industrial application requiring reliable, multi-channel temperature measurement from RTD or Thermocouple sensors within a flexible and compact distributed I/O system like the SIMATIC ET 200SP.
