Product Overview

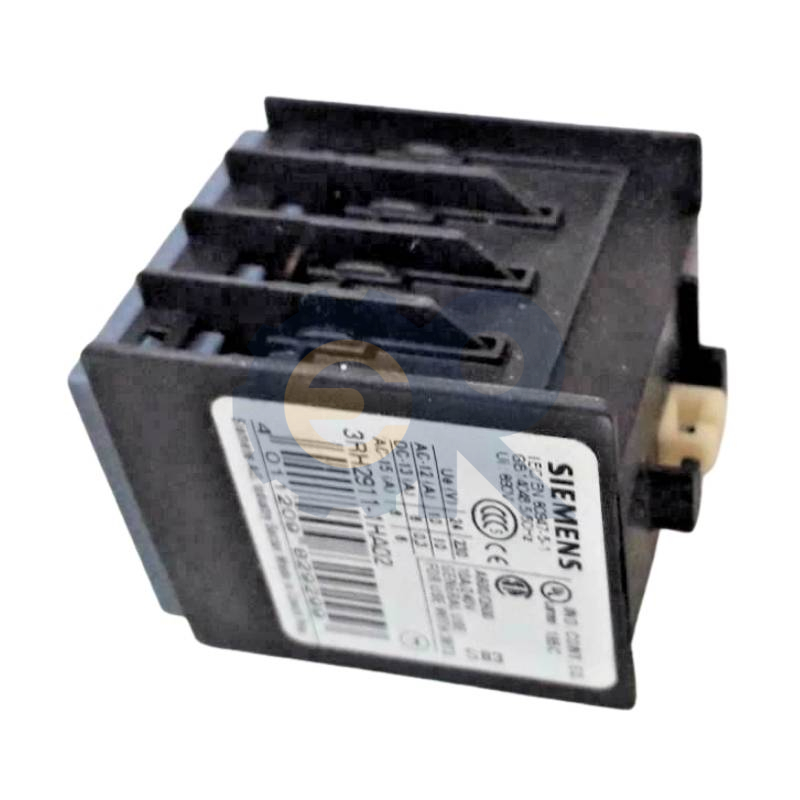

The Siemens 3RH2911-1HA02 is a versatile auxiliary switch engineered to enhance the control and feedback capabilities of Siemens 3RT2 and 3RH2 series contactors and relays. With a configuration of two Normally Closed (NC) contacts, this module is perfect for a wide range of control circuit functions, including status feedback, signal conversion, and interlocking. Its key feature is the quick, snap-on mounting design, which allows for tool-free installation directly on the front of compatible contactors, saving significant time and effort. The 3RH2911-1HA02 utilizes robust screw terminals for a secure and stable connection and is certified to multiple international standards, including UL, CSA, CE, and CCC, ensuring reliable operation in demanding environments.
Specifications
| Parameter: Value | Parameter: Value |
| Model: 3RH2911-1HA02 | Manufacturer: Siemens SIRIUS |
| Type: Auxiliary Switch | Contact Configuration: 2 Normally Closed (NC) |
| Insulation Voltage: 690 V AC | Impulse Withstand Voltage: 6 kV |
| Rated Current (AC-12): 10 A | Rated Current (AC-14/AC-15): 6 A |
| Rated Current (DC-12): 10 A | Rated Current (DC-13, 24V): 6 A |
| Mounting Type: Front mount, snap-on | Terminals: Screw terminals |
| Dimensions (W x D x H): 36mm x 43.7mm x 37.5mm | IP Protection: IP20 |
| Operating Temperature: -25°C to 60°C | Mechanical Lifetime: 10,000,000 cycles |
| Electrical Lifetime (AC-15, 230V): 200,000 cycles | Net Weight: 0.045 kg |
Note: The information above is based on publicly available data and typical specifications for the SIRIUS auxiliary switches. Precise specifications may vary with different configurations. For exact values, please consult official Siemens documentation.
