Panoramica del prodotto
Intrinsically Safe NAMUR Signal Processing

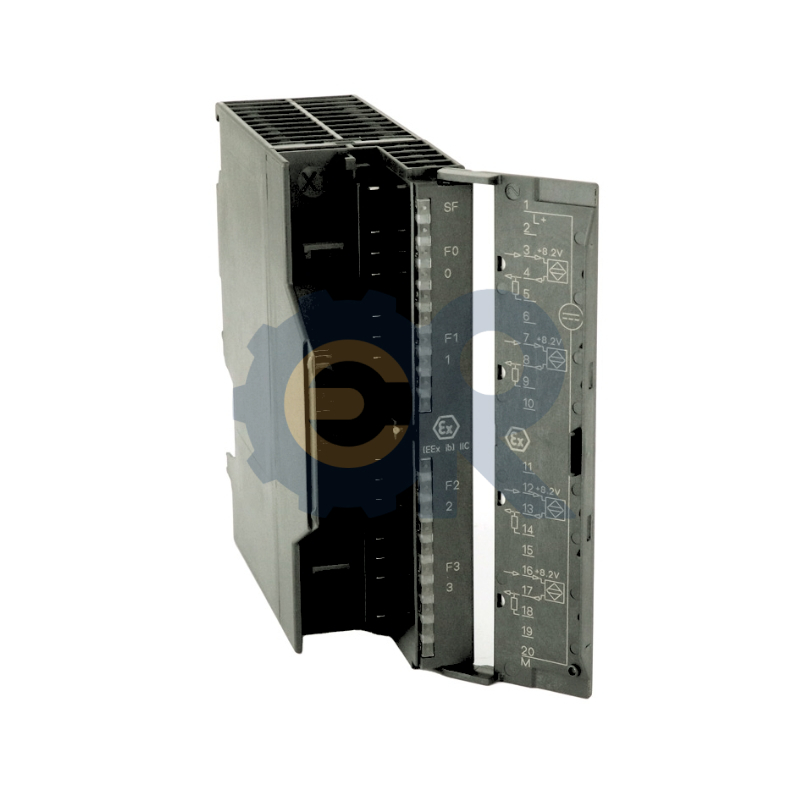

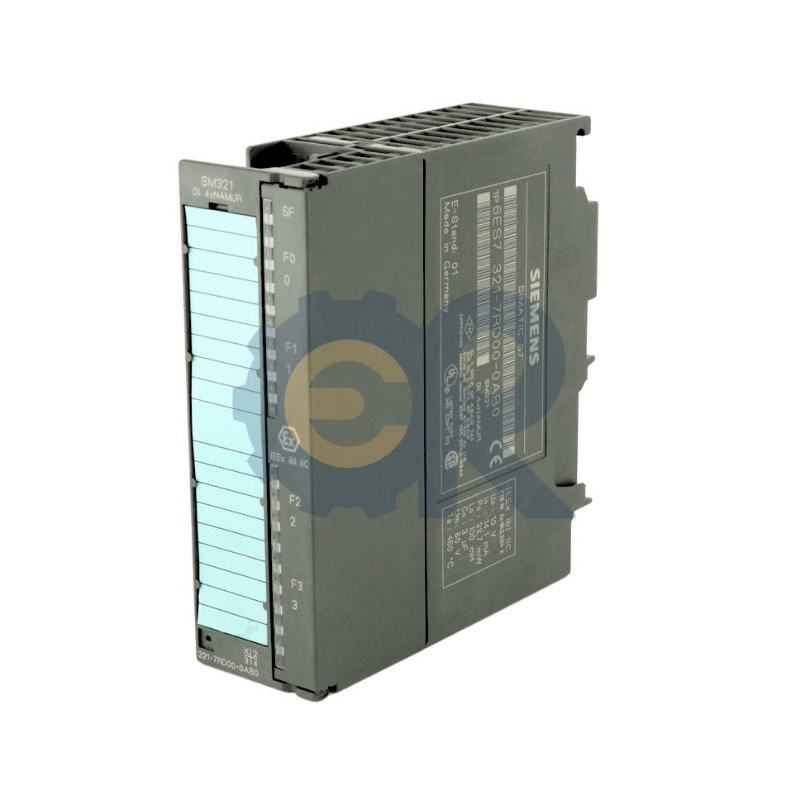

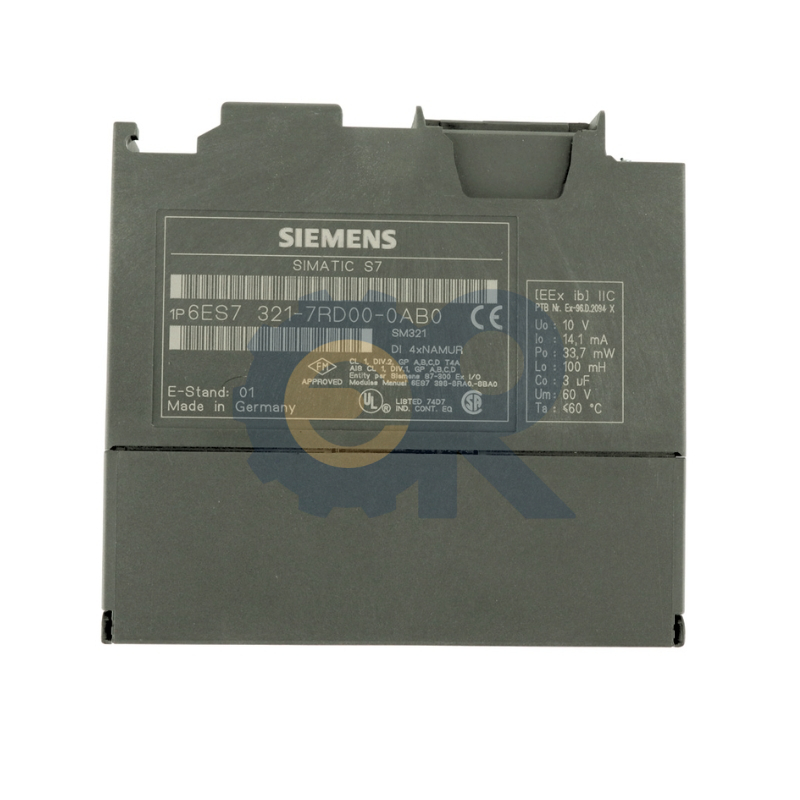

You can achieve secure and precise data collection from explosive atmospheres by deploying the Siemens 6ES7321-7RD00-0AB0. Questo Modulo di ingresso digitale is specifically engineered to interface with NAMUR sensors (DIN EN 60947-5-6), providing the necessary electrical isolation for intrinsically safe circuits. GoldRayline supplies this module for chemical, oil, and gas applications where monitoring field devices in hazardous zones is a critical safety requirement.
Advanced Diagnostics to Solve Maintenance Gaps
IL Siemens 6ES7321-7RD00-0AB0 features comprehensive diagnostic capabilities, including wire-break and short-circuit detection for each of its 4 channels. It solves the pain point of undetected field-side failures that can lead to system downtime or safety risks. As a specialized supplier, GoldRayline ensures this module provides real-time status feedback through its integrated LED displays, allowing your maintenance team to pinpoint faults in the field loops instantly.
Reliable Sourcing for Critical Process Spares
GoldRayline recognizes that specialized I/O modules for hazardous areas are often subject to long lead times. We maintain a massive inventory of S7-300 signal modules at highly competitive pricing. Every 6ES7321-7RD00-0AB0 sourced through our global network undergoes rigorous isolation-resistance testing and channel-logic verification on original Siemens test racks, ensuring the hardware meets strict industrial safety standards before it reaches your site.
Specifiche
| Technical Feature | Official Data Specification | Technical Feature | Official Data Specification |
| Numero di input | 4 ingressi digitali | Tipo di input | NAMUR (DIN EN 60947-5-6) |
| Signal Level 0 | ≤ 1.2 mA | Signal Level 1 | ≥ 2.1 mA |
| Isolamento | Galvanic (Channels to Bus) | Diagnostica | Wire-break / Short-circuit |
| Tensione nominale | 24 V DC (via Backplane) | Consumo attuale | typ. 50 mA |
| Safety Type | Intrinsically Safe [Ex ia] | Address Space | 1 Byte (Input) |
| Dimensioni (L x A x P) | 40 × 125 × 117 mm | Classe di protezione | IP20 |
| Temperatura di esercizio | da 0 °C a +60 °C | Product Net Weight | approx. 0.23 kg |
Related Siemens SIMATIC S7-300 Digital Input Modules
GoldRayline offers a comprehensive range of S7-300 signal modules. These models from our 3,911-item database are selected to complement your NAMUR input system, providing various channel densities and isolation levels for your control cabinet.
| Numero di modello | Channel Count | Tipo di segnale | Caratteristica | Connessione |
| 6ES7321-1BH02-0AA0 | 16 Inputs | 24 V CC | Standard Digital | 20 pin |
| 6ES7321-1BL00-0AA0 | 32 Inputs | 24 V CC | High Density | 40 pin |
| 6ES7321-1CH00-0AA0 | 16 Inputs | 24 V CC | Isolated (Source/Sink) | 20 pin |
| 6ES7321-7BH01-0AB0 | 16 Inputs | 24 V CC | High Speed / Diag. | 20 pin |
| 6ES7321-1FF01-0AA0 | 8 Inputs | 120V/230V AC | High Voltage | 20 pin |
| 6ES7322-1BH01-0AA0 | 16 Outputs | 24 V CC | Uscita standard | 20 pin |
| 6ES7392-1AJ00-0AA0 | N / A | Accessorio | Connettore frontale | 20 pin |
Note: This table highlights core Digital I/O components currently ready for dispatch from GoldRayline’s global logistics hub. We provide highly competitive pricing for both standard and specialized NAMUR-rated variants. Contact us for a real-time quote on your full module bill of materials.
