Produktübersicht
Deterministic Safety for Complex Process Control

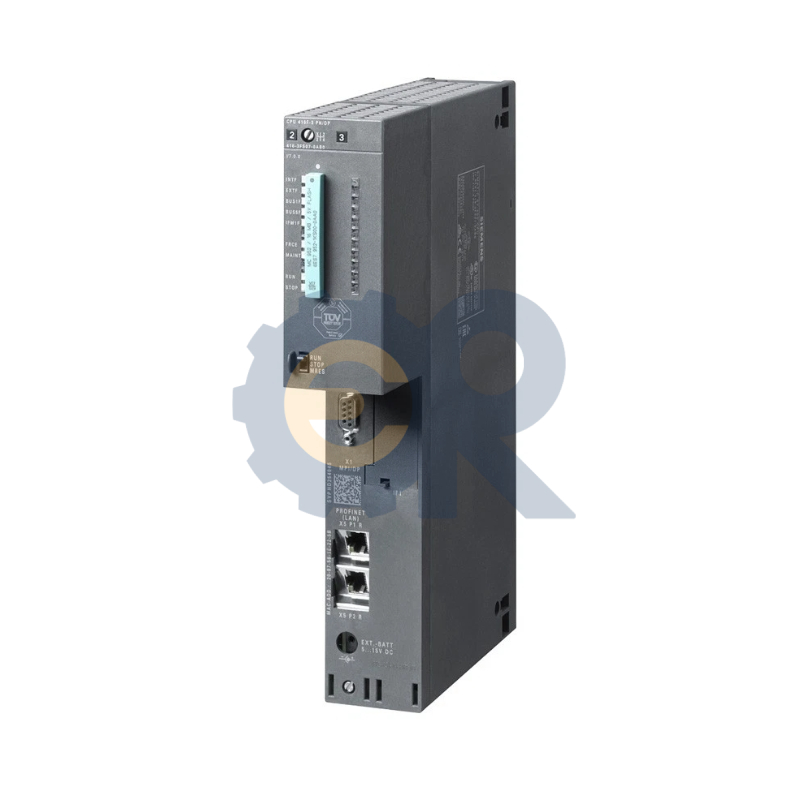

Der 6ES7416-3FS07-0AB0 (CPU 416-3F PN/DP) is the premier safety controller in the S7-400 lineup. It is engineered for environments where standard PLC logic is insufficient to protect human life and expensive machinery—such as offshore drilling platforms, automotive painting lines, and burner management systems (BMS). With a massive 16 MB work memory (8 MB code/8 MB data), it simultaneously executes standard automation and failsafe programs without performance degradation. Its V7.0 architecture achieved a bit-processing speed of 12.5 ns, allowing for ultra-fast reaction times in emergency stop sequences and light curtain monitoring, ensuring compliance with SIL 3 and PLe safety standards.
Verified Failsafe Hardware for Validated Systems

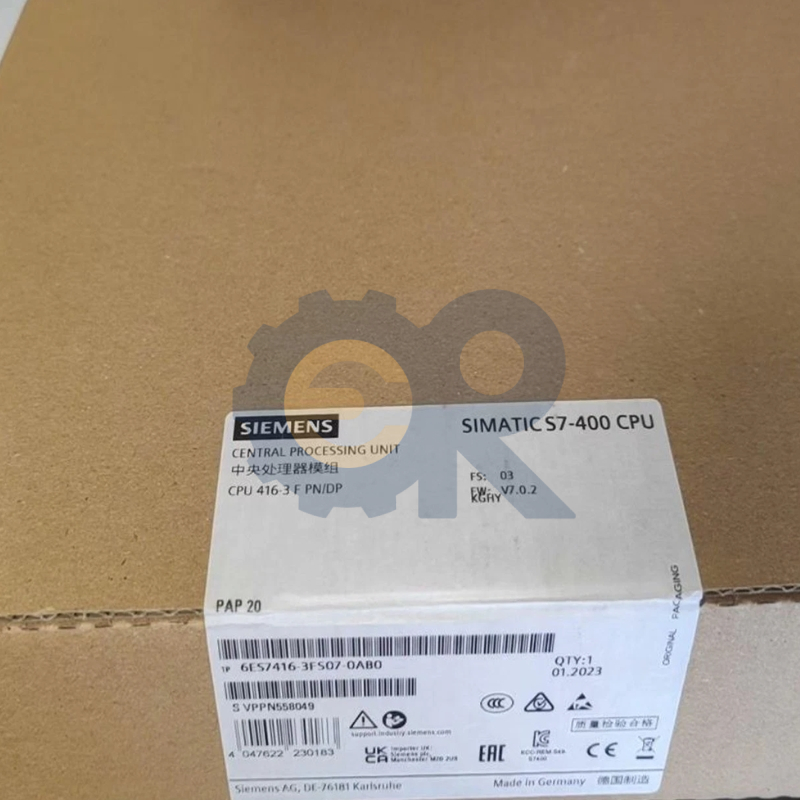

GoldRayline specializes in providing the exact 07-0AB0 V7.0 revision, which is essential for maintenance in safety-validated environments. In these industries, replacing a CPU with a different firmware or hardware revision can trigger an expensive and time-consuming safety re-certification process. We supply original Siemens safety hardware to ensure a “plug-and-play” replacement that preserves your safety signature. By maintaining direct inventory of the 416-3F, we help B2B traders and plant managers bypass long factory lead times and restore safety-critical operations immediately.
Technische Daten
| Modellnummer | 6ES7416-3FS07-0AB0 | Marke | SIEMENS |
| Sicherheitsintegrität | SIL 3 / PLe / Cat. 4 | Arbeitsspeicher | 16 MB (Total) |
| Logic Speed | 12.5 ns (Bit) | PROFINET | 2-Port Switch (RJ45) |
| PROFIBUS | 12 Mbit/s (RS485) | Sicherheitsprotokoll | PROFIsafe |
| I/O Address Space | 16 KB (Total) | Breite | 50 mm (2 Slots) |
| V7.0 Features | Firmware Update via PN | Multi-computing | Supported (up to 4) |
| Stromverbrauch | 1.3 A (max 5V) | Maße | 50 x 290 x 219 mm |
Related Siemens SIMATIC S7-400 Components
Der 6ES7416-3FS07-0AB0 requires specialized Failsafe-rated storage and power architecture to maintain the integrity of its SIL 3 safety program.
| Modellnummer | Komponententyp | Technical Role | Integration |
| 6ES7952-1AY00-0AA0 | Flash Memory Card | 64 MB Failsafe Backup | MC 952 Slot |
| 6ES7407-0RA02-0AA0 | Stromversorgung | PS 407 20A System Power | Slot 1 (Standard) |
| 6ES7138-4FA05-0AB0 | F-Digital Input | 8/16-Ch SIL 3 Safety In | ET 200S PROFIsafe |
| 6ES7138-4FB04-0AB0 | F-Digital Output | 4-Ch SIL 3 Safety Out | ET 200S PROFIsafe |
| 6ES7155-6AU00-0BN0 | Schnittstellenmodul | ET 200SP PN Node | RJ45 BusAdapter |
| 6ES7901-4BD00-0XA0 | PROFINET Cable | Green Industrial Ethernet | M12/RJ45 Prep |
| 6ES7971-0BA00-0AA0 | Backup Battery | 3.6V Lithium AA Cell | PS Battery Tray |
