Produktübersicht
Specialized High-Speed Analog Input/Output

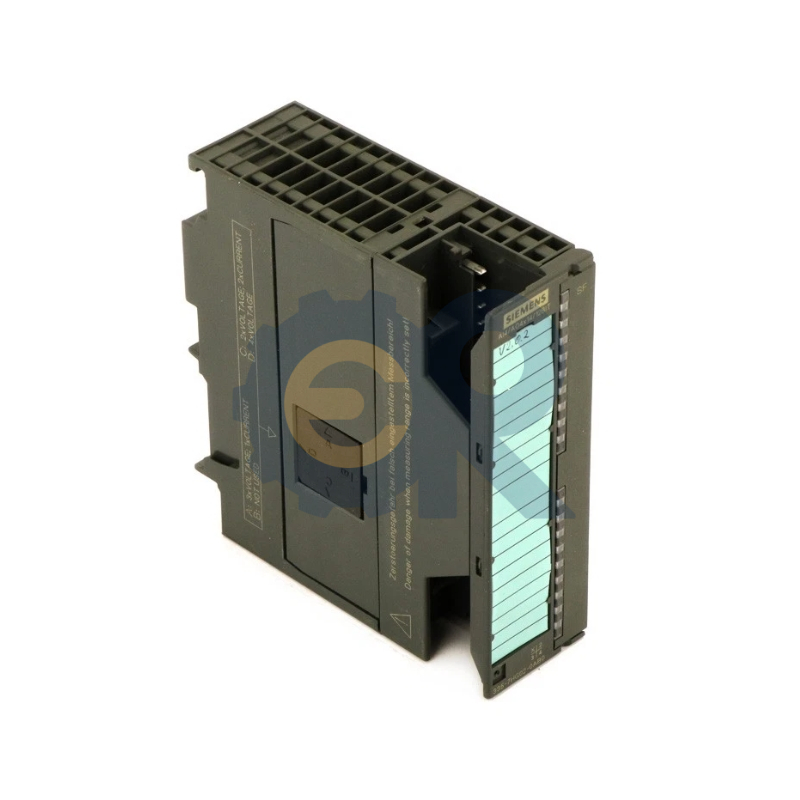

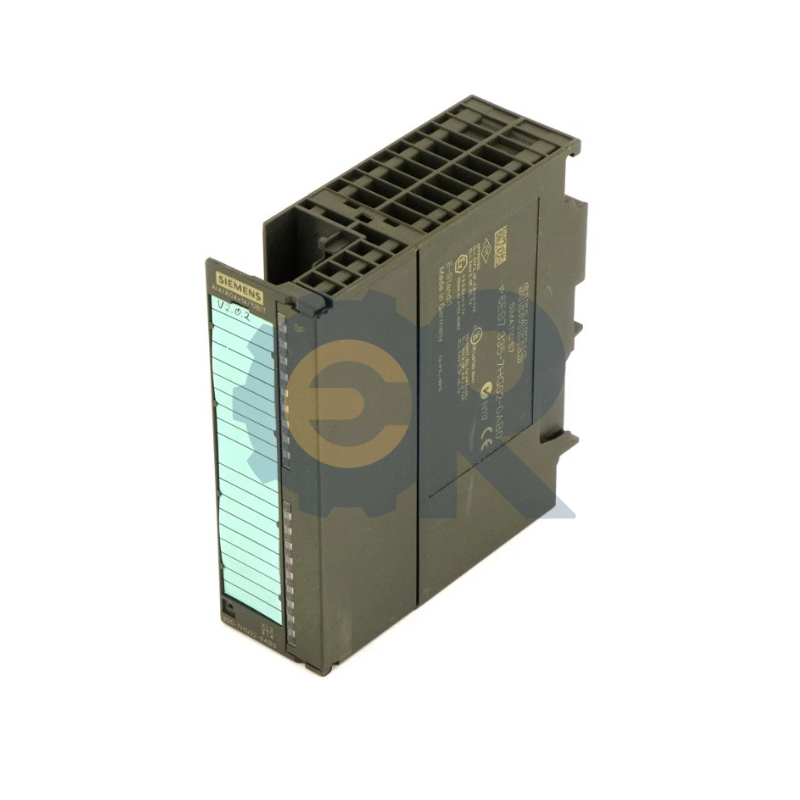

Der Siemens 6ES7335-7HG02-0AB0 is a high-performance, multi-functional analog module designed for SIMATIC S7-300 applications that demand extreme speed and precision, such as high-speed hydraulic controls or rapid positioning tasks. It features 4 analog inputs and 4 analog outputs within a single 80mm-wide module. With a basic conversion time of just 0.5 ms for all channels and 14-bit resolution, the SM 335 is engineered for isochronous mode and direct connection to encoders, making it a “High Speed” power player in the S7-300 lineup.
Reliable Supply Chain for High-End Components

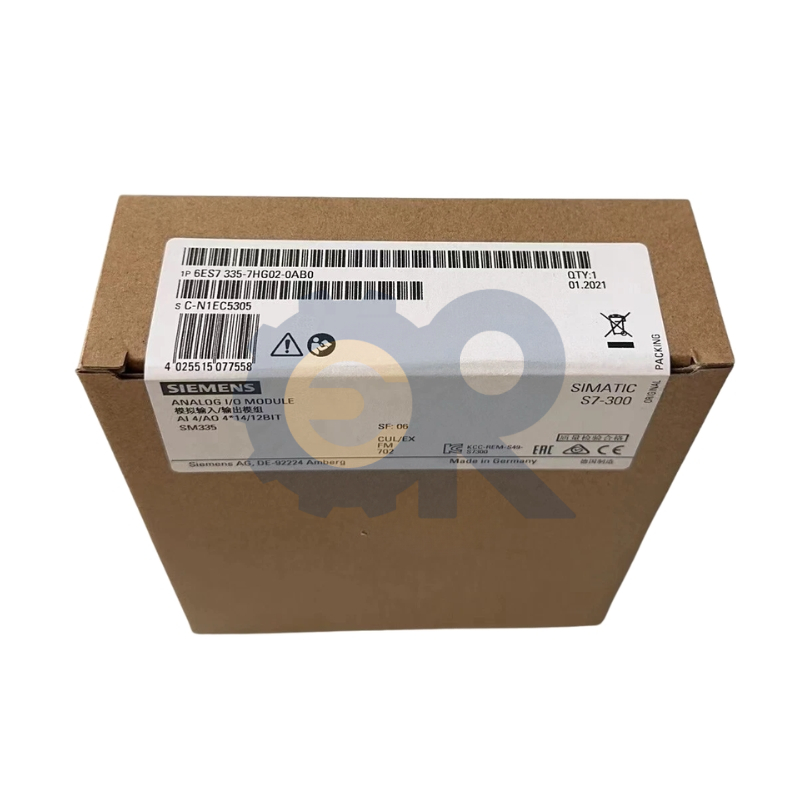

At GoldRayline, our value as a global trading partner is in sourcing these specialized “High Feature” modules that often face long factory lead times. We understand that an SM 335 is usually the heartbeat of a complex machine’s motion or pressure control loop. By maintaining an extensive inventory of original Siemens hardware, we offer highly competitive pricing and immediate availability. Our customer-centric service ensures that even rare, high-performance parts like the 6ES7335-7HG02-0AB0 are dispatched quickly, typically accompanied by pre-shipment photos for your final model and hardware version confirmation.
Technische Daten
| Modellnummer | 6ES7335-7HG02-0AB0 | Produktmarke | SIEMENS |
| Produkttyp | Analog Input/Output Module | Produktserie | SIMATIC S7-300 |
| Number of I/O | 4 Inputs / 4 Outputs | Auflösung | 14 Bits |
| Konvertierungszeit | 0.5 ms (all channels) | Eingabebereich | ±10 V, 0–10 V, 1–5 V |
| Ausgabebereich | ±10 V, 0–10 V, 1–5 V | Encoder-Unterstützung | 1 Channel (5V / 24V) |
| Isolierung | Tested at 500V DC | Isochroner Modus | Ja |
| Current Draw (L+) | max. 300 mA (at 24V DC) | Current Draw (5V) | max. 200 mA (Backplane) |
| Stromausfall | typ. 5 W | Address Space | 16 Byte (I) / 16 Byte (O) |
| Abmessungen (B x H x T) | 80 × 125 × 120 mm | Schutzklasse | IP20 |
| Betriebstemperatur. | 0 °C bis +60 °C | Product Net Weight | approx. 450 g |
Related Siemens SIMATIC S7-300 Analog I/O Modules
GoldRayline provides a specialized selection of high-speed and universal analog units. These models from our 3,911-item database are selected to complement the SM 335, providing various precision levels and signal densities for your control architecture.
| Modellnummer | Channel Count | Signaltyp | Besonderheit | Verbindung |
| 6ES7331-7HF01-0AB0 | 8 Inputs | Spannung / Strom | High Speed (0.1ms) | 40-polig |
| 6ES7332-7ND02-0AB0 | 4 Outputs | Spannung / Strom | 16-bit High Speed | 20-polig |
| 6ES7331-7NF10-0AB0 | 8 Inputs | Spannung / Strom | 16-bit High Prec. | 40-polig |
| 6ES7331-7KF02-0AB0 | 8 Inputs | Universal | 12/14-bit | 20-polig |
| 6ES7334-0CE01-0AA0 | 4 Eingänge / 2 Ausgänge | Standard Mixed | Low Cost | 20-polig |
| 6ES7315-2EH14-0AB0 | N / A | CPU 315-2 PN/DP | Regler | Profinet |
| 6ES7392-1AM00-0AA0 | N / A | Zubehör | Frontstecker | 40-polig |
